Flowline Valve is a reliable Manufacturer and Supplier of PTFE Lined Ball Check Valve in Jhagadia, Gujarat, India.
Our manufacturing facility is based in Ahmedabad, Gujarat, India.

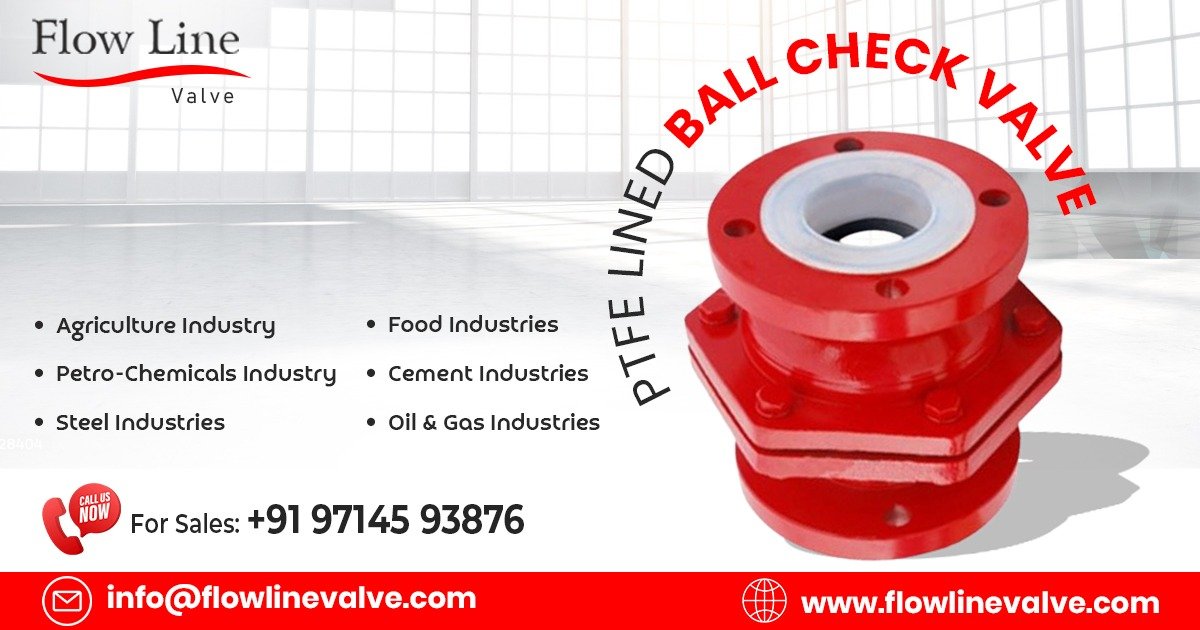

What is a PTFE Lined Ball Check Valve?
A PTFE Lined Ball Check Valve is a non-return valve that uses a floating ball to open and close the passage of fluid automatically.
During forward flow, the ball is lifted from its seat, allowing the medium to pass through easily, smoothly, and without obstruction.
When the flow stops or reverses, gravity or backpressure forces the ball back into its seat, creating a tight seal that prevents backflow.
The PTFE lining improves corrosion resistance, enabling the valve to handle aggressive chemicals safely without causing any body damage.
Specifications:
Description: MOC.
Body: DI / ASTM A216 GR WCB / CF8 / CF8M.
Ball: SOLID PTFE.
Lining: PFA / FEP / PVDF / HDPE / PP.
Lining thickness: 3mm Minimum.
Flange connection: ANSI B16.5, #150 / Customer requirement.
Spark test: 15 KVDC.
Uses of PTFE Lined Ball Check Valve:
Chemical Process Industries.
Pharmaceutical & Biotech Plants.
Fertilizer Manufacturing Units.
Water Treatment & Effluent Plants.
Pulp & Paper Industry.
Petrochemical & Refinery Systems.
Food & Beverage Processing.
Mining & Slurry Handling.
FAQs:
Q: Are these valves maintenance-free?
A: Yes, the self-actuating design requires minimal maintenance, and the PTFE lining significantly extends valve life.
Q: Can I use this valve for slurry applications?
A: Absolutely. PTFE lined ball check valves are widely used for slurry and abrasive media because of their wear resistance.
Q: How do I select the right size and pressure rating?
A: Flowline Valve’s technical team helps you select the correct size and pressure class based on your process requirements.
Flowline Valve delivers PTFE Lined Ball Check Valve in Jhagadia, Gujarat, India including other locations like Ahmedabad, Surat, Vadodara, Rajkot, Bhavnagar, Jamnagar, Gandhinagar, Junagadh, Gandhidham, Anand, Navsari, Morbi, Nadiad, Surendranagar, Bharuch, Mehsana, Bhuj, Porbandar, Palanpur, Valsad, Vapi, Rajkot, Veraval, Patan, Kalol, Botad, Amreli, Deesa, Jetpur.
Call Us:
+91 97145 93876
+91 93289 35785
+91 97145 97776
Mail Us:
flowlinevalve@gmail.com
sales@flowlinevalve.com
For further inquiries or customized solutions, feel free to contact us.
