Flowline Valve is a prominent Manufacturer and Supplier of PTFE Lined Ball Valve in Dahej, Bharuch, Gujarat.

Our manufacturing unit is based in Ahmedabad, Gujarat, India.

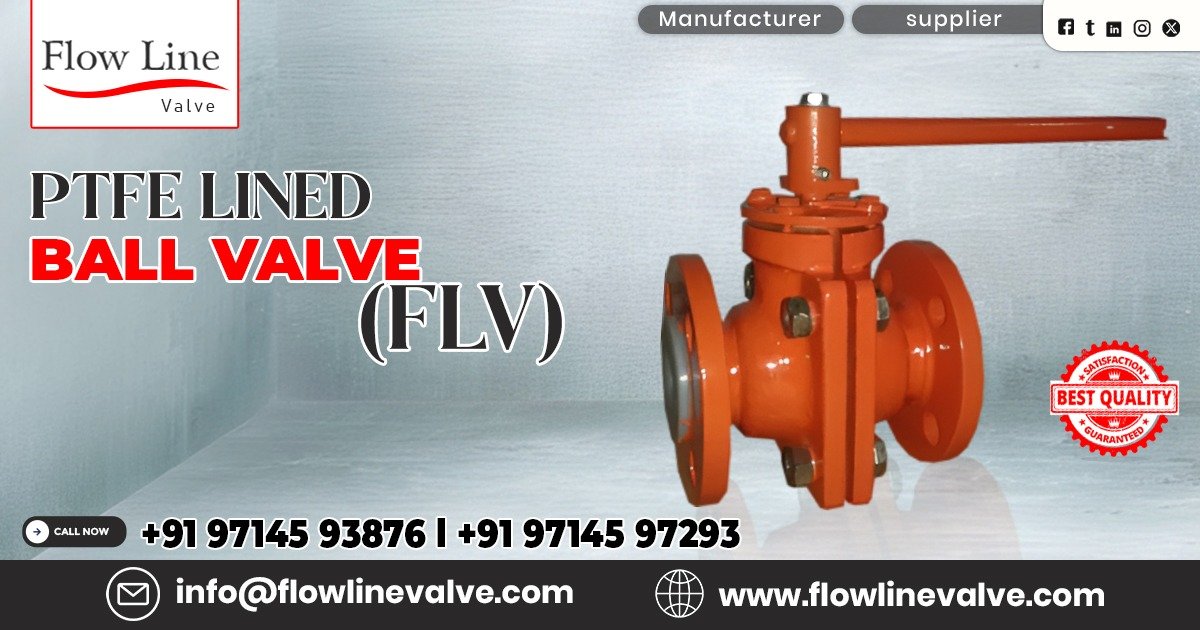

A PTFE Lined Ball Valve is an advanced industrial flow control device engineered for handling highly corrosive and chemically aggressive fluids.

It features a robust metal body internally coated with PTFE (Polytetrafluoroethylene), which acts as a protective barrier between the process media and the valve body.

This specialized lining ensures that all wetted parts remain isolated from harmful chemicals such as acids, alkalis, solvents, and oxidizing agents.

As a result, the valve delivers exceptional durability, safety, and long-term operational stability in demanding industrial environments.

Technical Specifications of PTFE Lined Ball Valve:

• Description: MOC
• Design std: BS 5351
• Body: DI / ASTM A216 GR WCB / CF8 / CF8M
• Ball: DI / ASTM A216 GR WCB / CF8 / CF8M
• Lining: PFA / FEP / PVDF / HDPE / PP
• Lining thickness: 3mm Minimum
• Flange connection: ANSI B16.5, #150 / Customer requirement
• Spark test: 15 KVDC

Uses of PTFE Lined Ball Valve:

• Chemical processing plants
• Pharmaceutical manufacturing units
• Fertilizer and agrochemical industries
• Petrochemical and refinery systems
• Acid and solvent handling systems
• Water treatment and effluent plants
• Food and beverage processing
• Pulp and paper industries

FAQs – PTFE Lined Ball Valve:

Q1. What is the main purpose of PTFE lining in the valve?
It protects internal metal parts from corrosion and chemical attack.

Q2. Can it be used for highly acidic fluids?
Yes, PTFE lining provides excellent resistance to most strong acids.

Q3. Is it suitable for high-pressure systems?
Yes, it is designed to perform efficiently under industrial pressure conditions.

Q4. Does it require regular maintenance?
Minimal maintenance is required due to its anti-corrosive properties.

Q5. Does it ensure leak-proof operation?
Yes, it is engineered for tight sealing and reliable shut-off performance.

Flowline Valve is a prominent Manufacturer and Supplier of PTFE Lined Ball Valve in Dahej, Bharuch, Gujarat including other locations like Ahmedabad, Surat, Vadodara, Rajkot, Bhavnagar, Jamnagar, Anand, Gandhinagar, Bharuch, Morbi, Vapi, Valsad, Junagadh, Nadiad, Mehsana, Porbandar, Godhra, Navsari, Surendranagar, Patan, Amreli, Palanpur, Modasa, Dahod, Gandhidham, Bhuj, Ankleshwar, Kalol, Sanand, Halol, Kadi, Khambhat, Jetpur, Kutch, Mundra, Morbi, Rajpipla, Dwarka, Dholka, Gandharpur, Bhachau, Chotila, Dhandhuka, Umargam, Padra, Jhagadia, Kalol, Savli, Sachin, Palghar, Godhra, Vallabh Vidyanagar, Mandvi, Halvad, Balasinor, Nandesari, Pardi, Karamsad.
