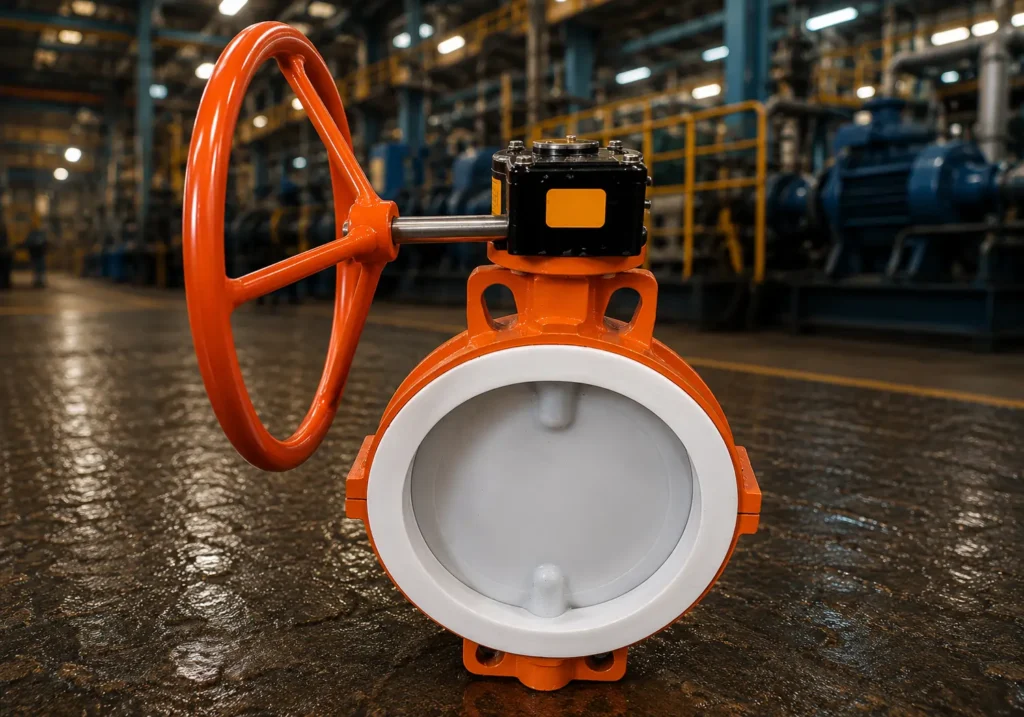

PTFE Lined Butterfly Valve

Send Us A Message

+91 97145 93876
+91 97145 97293

flowlinevalve@gmail.com
sales1@flowlinevalve.com

Get A Quote

Specifications for PTFE Lined Butterfly Valve

Valve TypeButterfly Valve (Wafer / Lug / Flanged)
Design StandardBS 5155 / API 609 / MSS SP-67
Size Range15 NB to 600 NB
Body MaterialASTM A216 GR WCB / CF8 / CF8M
Lining MaterialInside Total PTFE ( PFA optional )
Disc MaterialPTFE Lined SS / CF8 / CF8M
Seat MaterialPTFE
Pressure RatingPN10 / PN16
Temperature Range-29°C to 200°C
End ConnectionWafer / Lug Type
OperationLever / Gear / Pneumatic / Electric Actuator
Tight Shut-OffBubble Tight

Features

  • Excellent corrosion resistance due to high-quality PTFE lining
  • Suitable for handling highly aggressive chemicals and acids
  • Smooth quarter-turn operation for quick open and close control
  • Bubble-tight shut-off ensuring zero leakage performance
  • Wide temperature and pressure handling capability
  • Lightweight and compact design for easy installation

LEVER/GEAR OPERATOR

For easy quarter turn operation and secure locking.

STEM

Precision machined stem ensures smooth operation and high strength.

LINED BODY

Inside total PTFE lining provides excellent corrosion resistance and long service life.

DISC (INSIDE TOTAL PTFE)

PTFE lined disc for bubble tight shut-off and low torque operation.

LINED SEAT

Resilient PTFE seat ensures bubble tight shut-off and excellent durability.

PTFE Lined Butterfly Valve Manufacturer in india

A PTFE Lined Butterfly Valve is a corrosion-resistant flow control device designed for handling highly aggressive chemicals, acids, alkalis, and solvents in industrial piping systems. It features a strong metal body with an internal PTFE lining that provides excellent chemical resistance and prevents internal corrosion, ensuring safe and contamination-free fluid handling.

The valve operates on a quarter-turn mechanism for quick opening and closing, offering bubble-tight sealing performance with minimal leakage. It is widely used in chemical, pharmaceutical, petrochemical, and water treatment industries due to its durability, lightweight design, and low maintenance requirements, making it ideal for demanding process applications.

PTFE Lined Butterfly Valve

Our Product range

Why Choose PTFE Lined Butterfly Valve ?

PTFE Butterfly Valves are preferred for applications involving highly corrosive and aggressive fluids where standard valves fail. The PTFE lining provides excellent chemical resistance, protecting the valve body from corrosion and ensuring long-term reliability in harsh industrial environments.

These valves offer bubble-tight sealing, smooth quarter-turn operation, and low torque performance, making them efficient and easy to operate in both manual and automated systems. Their lightweight and compact design allows for simple installation and reduced space requirements.

Applications

  • Chemical Industry
  • Pharmaceutical Industry
  • Petrochemical Industry
  • Water Treatment Plants
  • Dye & Pigment Industry
  • Pulp & Paper Industry
  • Food & Beverage Industry
  • Metal & Mining Industry
